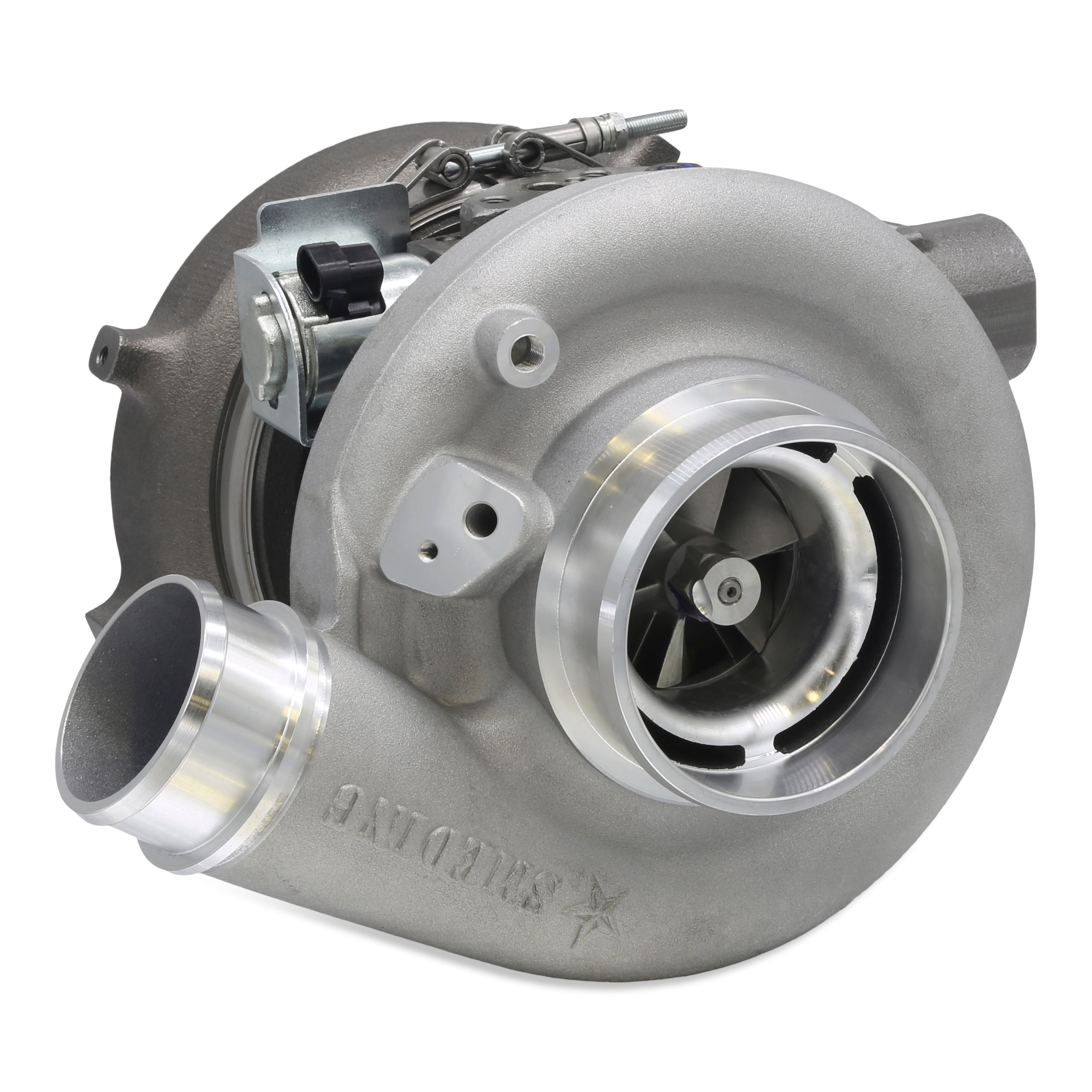

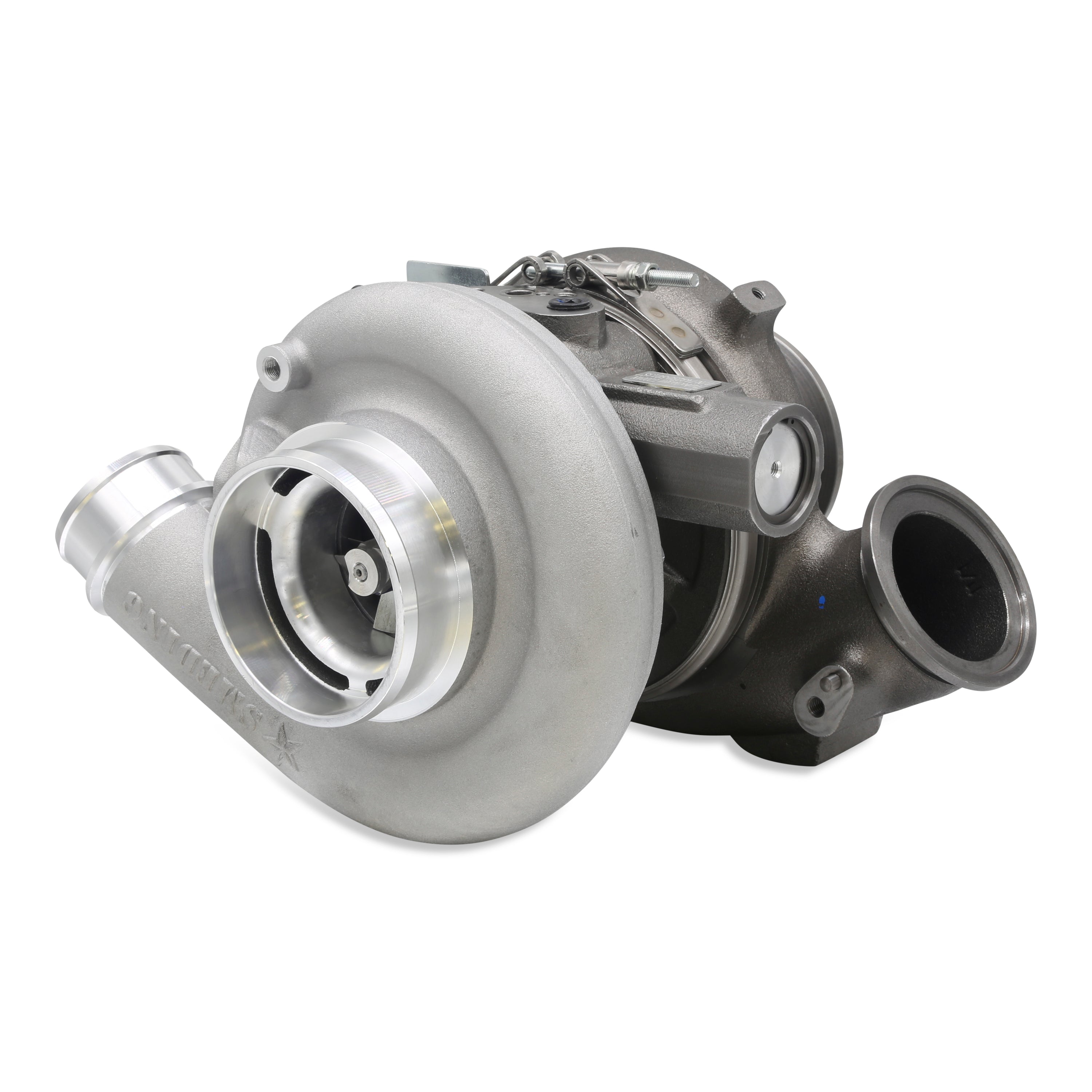

Smeding Diesel Stage 1 6.0 Powerstroke Turbo

Take your 2003–2007 Ford 6.0L Powerstroke to the next level with the Smeding Diesel Stage 1 VGT Turbo—a 100% drop-in replacement turbo designed for reliability, power, and seamless fitment. Choose between the affordable 63.5 × 88 mm single-plane cast wheel or step up to the extended-blade billet option for enhanced airflow and responsiveness. Built around a .72 A/R race compressor cover and a 72.5 × 66 mm 13-blade turbine wheel, this turbo delivers 400 to 530 hp while retaining OEM turbo mounts—no modifications needed (except early 2003 pedestal trimming). Pair it with 175/30 injectors and enjoy responsive throttle, excellent drivability, and solid towing capability.

Why Choose Smeding Stage 1?

• Effortless Installation — Designed as a direct drop-in turbo with factory mounting, no core deposit, and plug-and-play flossing.

• Balanced Performance — Ideal for towing, daily driving, and moderate builds, offering up to 530 hp without overkill.

• Reliable Materials — Upgrade to billet compressor for faster spool and enhanced durability.

• Consistent Driveability — Smooth throttle response under load without aggressive whistle or overly loud spool.

Features & Details:

400 to 530 HP
63.5x88mm single plane cast wheel or billet wheel with extended blades
.72ar race compressor cover
72.5x66 13 blade turbine wheel
100% drop in

Pairs well with stock up to 175/30 injectors,

These turbos are based off of the 2004-2007 turbo mount, to run this on a 2003 pedestal you will have to cut off the 3rd mounting bracket on the back of the turbo.
